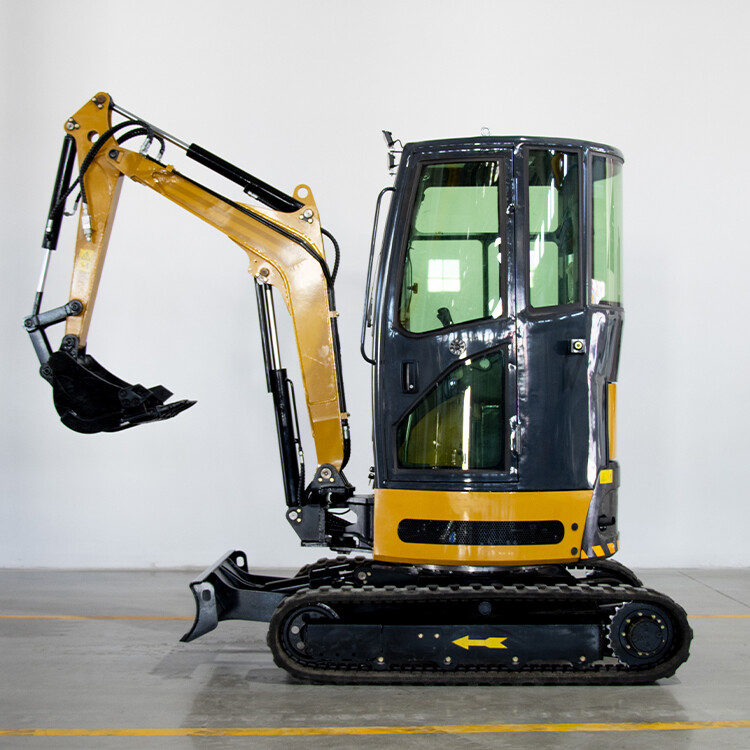

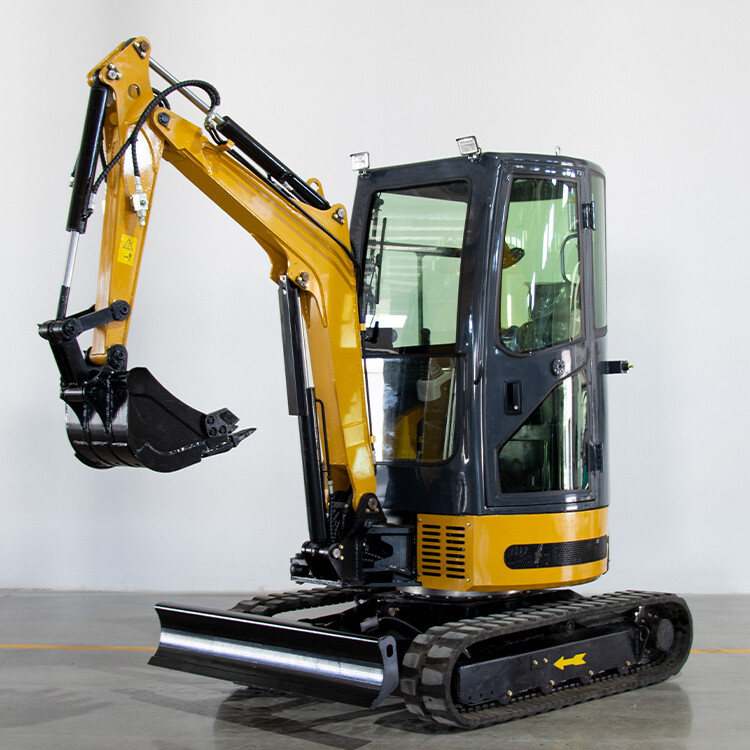

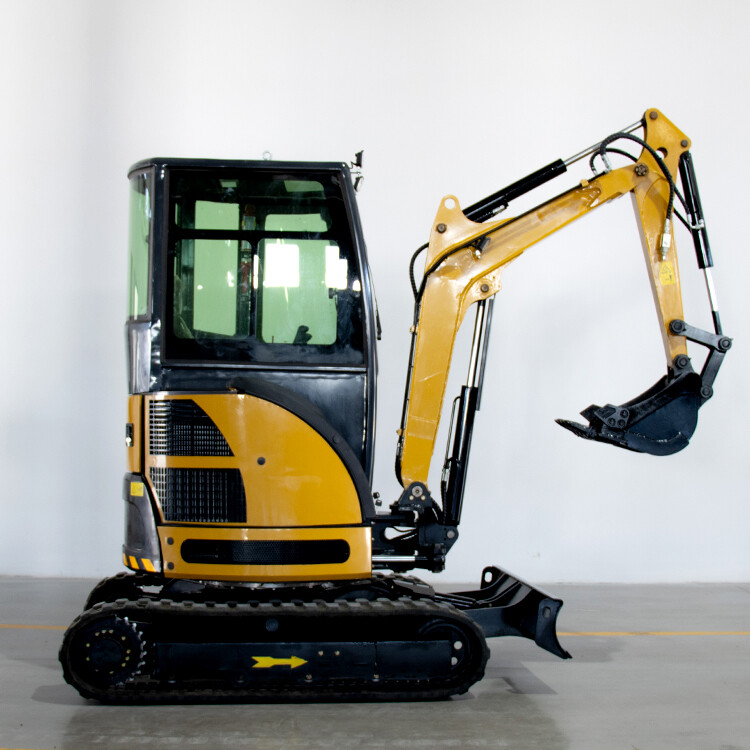

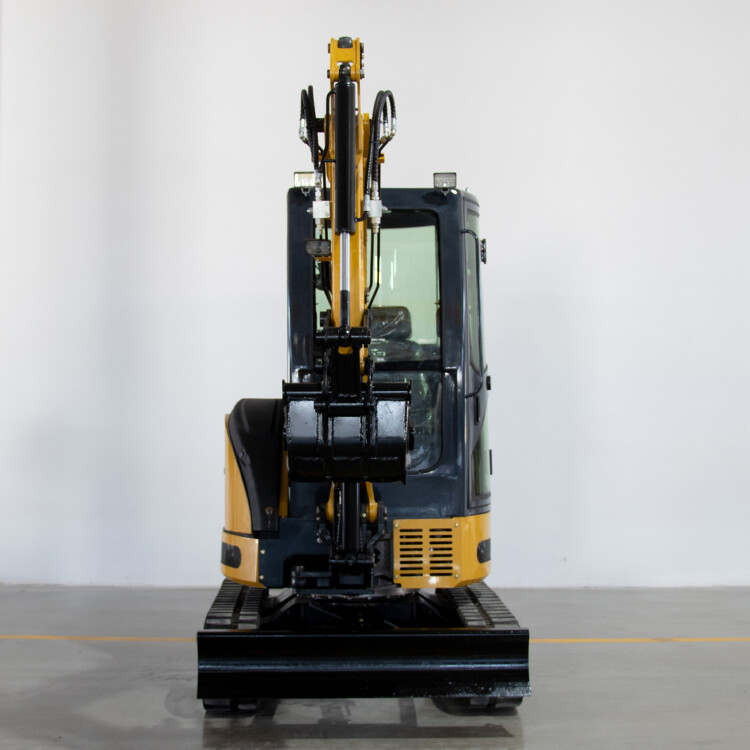

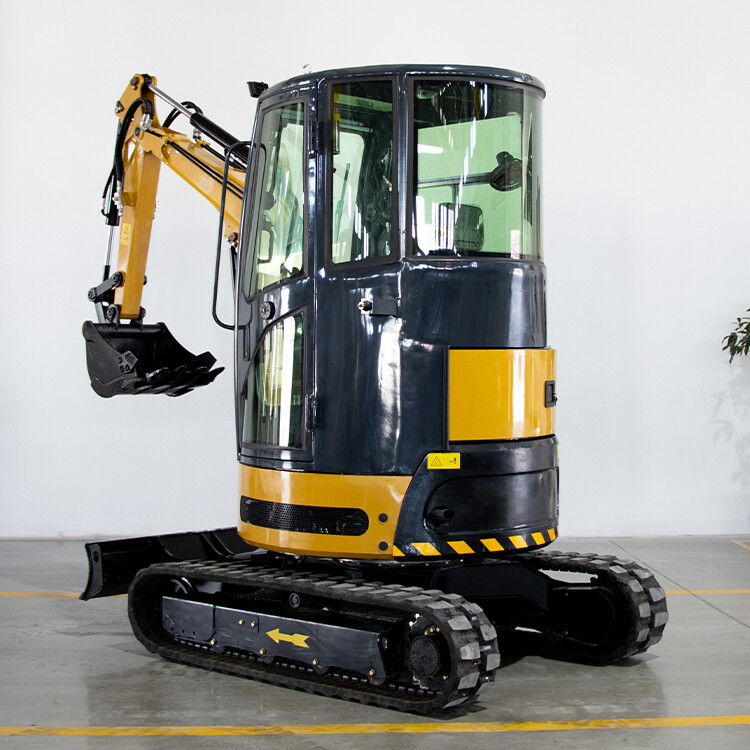

M30
Flagship crawler — high output for intensive operations.
Introduction
Enlarged, reinforced structure with improved stability, suitable for heavy-duty and continuous operation. Hydraulic pilot control and optimized design ensure smooth handling, lower fatigue, and higher efficiency. Spacious cab and refined layout improve operator comfort for long working hours. Rear-opening housing with protected hydraulic components simplifies maintenance and increases durability.
Specifications
Parameter | Value | Parameter | Value |
Operating Weight | 2750 kg | Gradeability | 35° |
Bucket Capacity | 0.075 m³ | Max Dig Height | 3980 mm |
Overall Dim | 3850×1500×2500 mm | Max Dump Height | 2660 mm |
Fuel Tank | 20 L | Max Dig Reach | 4230 mm |
Hydraulic Tank | 16 L | Max Dig Depth | 2500 mm |
Work Pressure | 18.2 MPa | Hydraulic Flow | 36 L/min |
Engine | Yanmar | Track Width | 280 mm |
Key Features
CE Certified
Meets European safety standards
Fuel Efficient
Advanced engine technology
24/7 Support
Round-the-clock technical assistance
