M20
Flagship crawler — high output for intensive operations.
Introduction

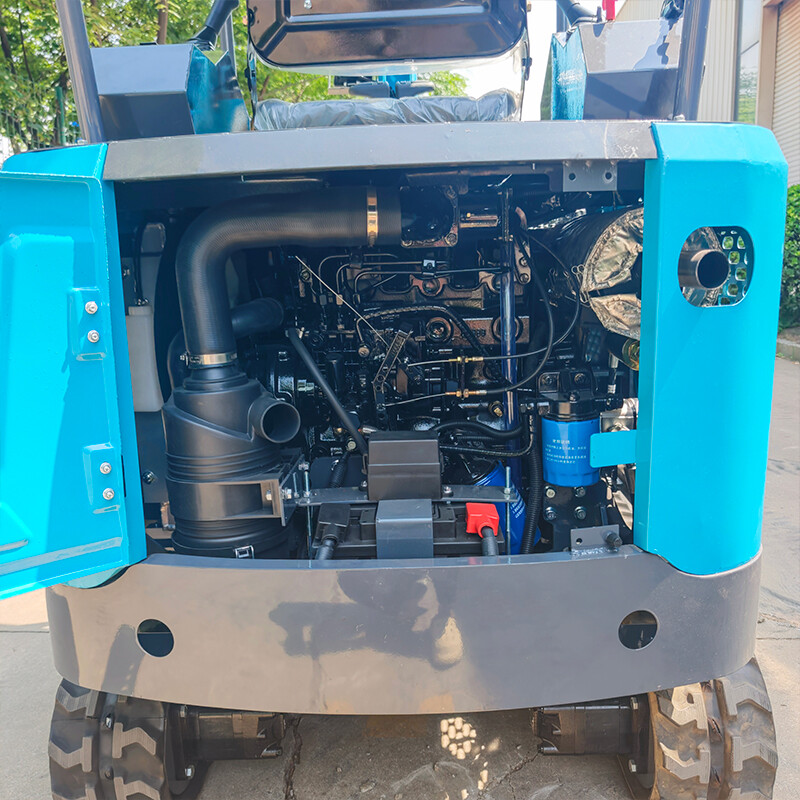

Hydraulic pilot control for smooth, precise, low-effort operation and higher efficiency. Rear-opening housing for clear layout and easier, faster maintenance. Top-mounted boom cylinder improves digging depth and reduces damage risk. Rear counterweight enhances stability and balance during operation. Optimized body design provides a more spacious, comfortable cab for long working hours.
Specifications
Parameter | Value | Parameter | Value |
Operating Weight | 1880 kg | Gradeability | 35° |
Bucket Capacity | 0.06 m³ | Max Dig Height | 3200 mm |
Overall Dim. | 3700×1250×2600 mm | Max Dump Height | 2200 mm |
Fuel Tank | 15 L | Max Dig Reach | 3600 mm |
Hydraulic Tank | 30 L | Max Dig Depth | 2400 mm |
Work Pressure | 20 MPa | Hydraulic Flow | 36 L/min |
Engine | Laidong | Track Width | 280 mm |
Key Features
CE Certified
Meets European safety standards
Fuel Efficient
Advanced engine technology
24/7 Support
Round-the-clock technical assistance
