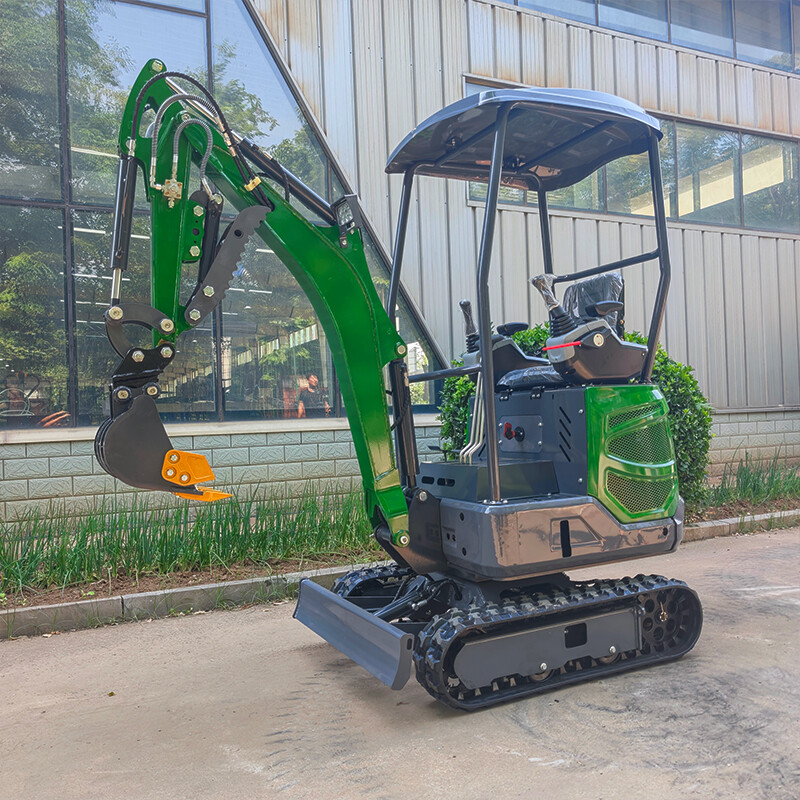

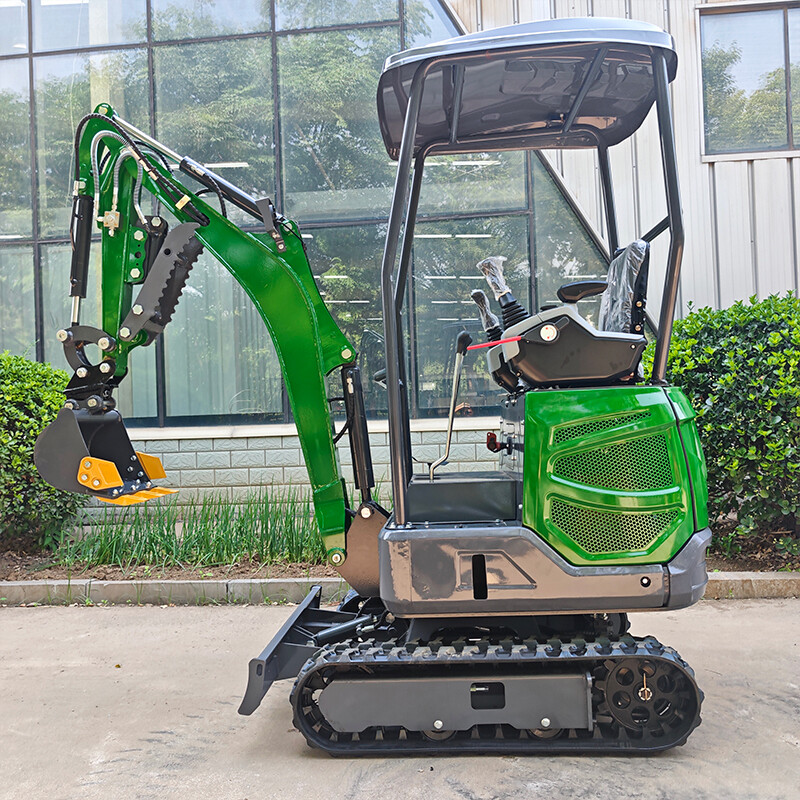

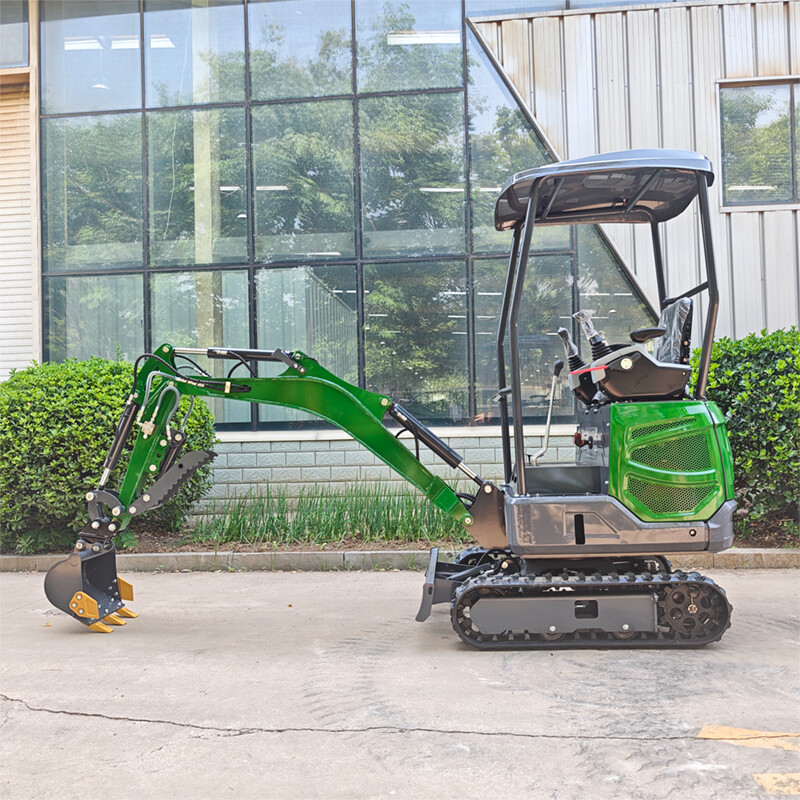

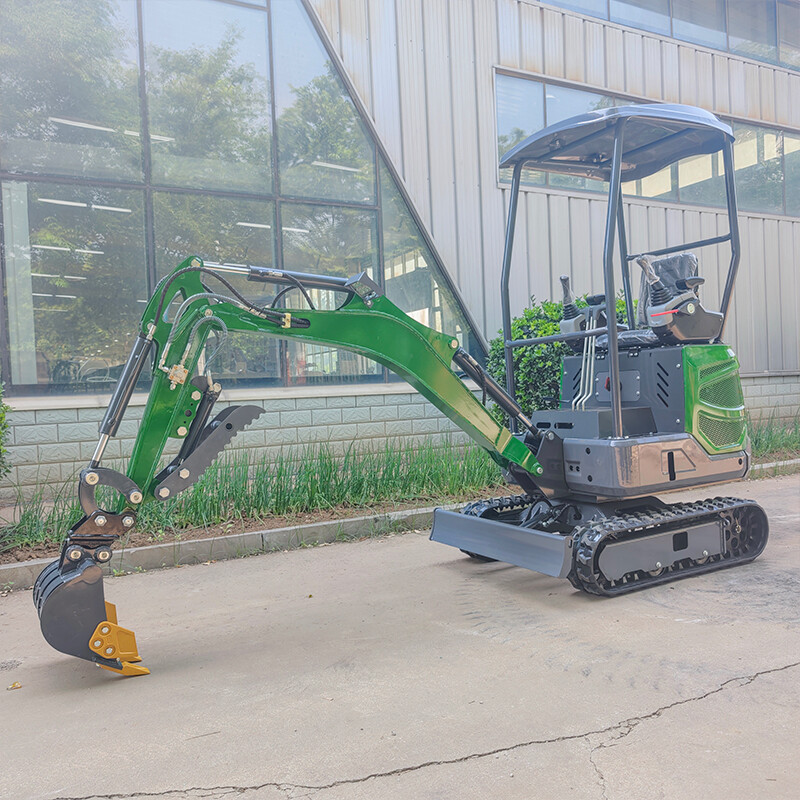

M18
Heavy-duty crawler built for sustained performance.
Introduction
Hydraulic pilot control system ensures smooth, precise response and reduces operator fatigue for higher efficiency. Rear-opening housing provides larger service space and easier access for faster maintenance. Multi-function instrument panel enables real-time monitoring for safer machine operation. Hidden hydraulic lines and optimized boom cylinder layout improve durability, digging depth, and reduce collision risk. Refined exterior design combines industrial functionality with a clean, modern appearance.
Specifications
Parameter | Value | Parameter | Value |
Operating Weight | 1680 kg | Gradeability | 35° |
Bucket Capacity | 0.055 m³ | Max Dig Height | 3000 mm |
Overall Dim. | 3400×1200×2400 mm | Max Dump Height | 2000 mm |
Fuel Tank | 12 L | Max Dig Reach | 3300 mm |
Hydraulic Tank | 25 L | Max Dig Depth | 2100 mm |
Work Pressure | 18 MPa | Hydraulic Flow | 30 L/min |
Engine | Laidong | Track Width | 250 mm |
Key Features
CE Certified
Meets European safety standards
Fuel Efficient
Advanced engine technology
24/7 Support
Round-the-clock technical assistance
Download Center
Access detailed documentation and resources
