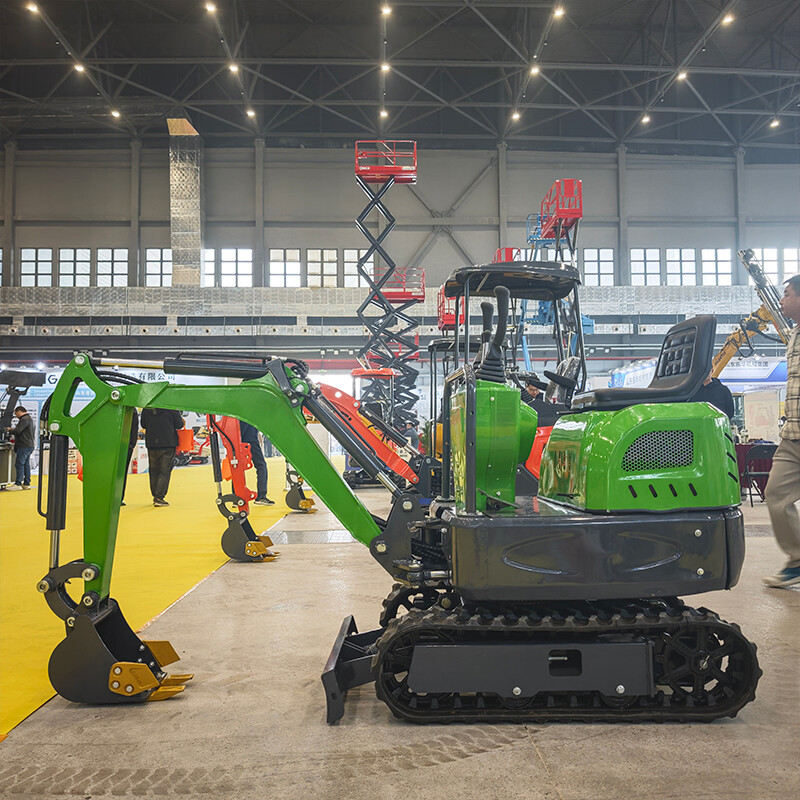

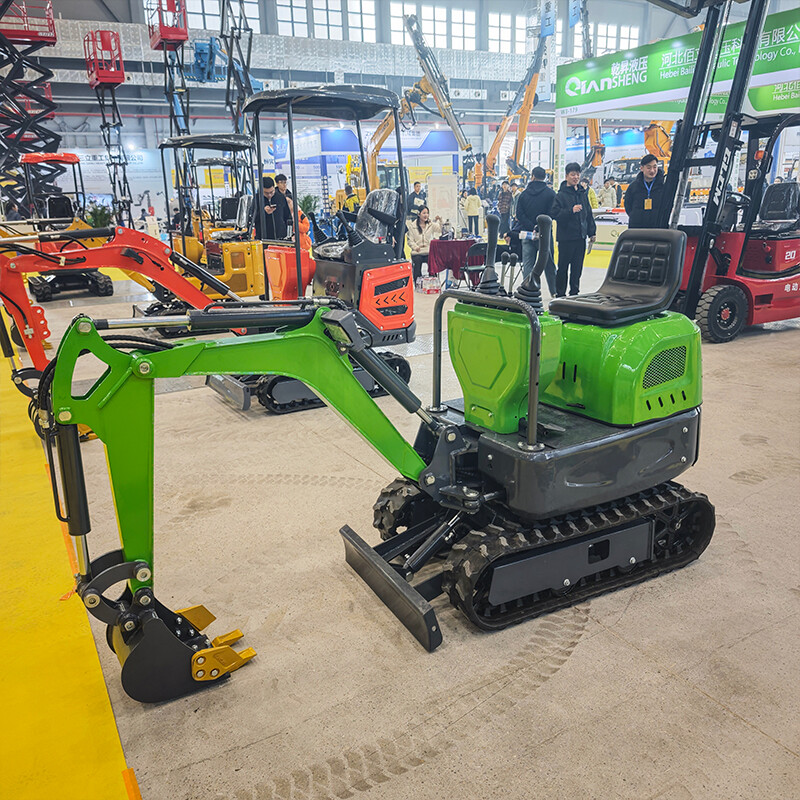

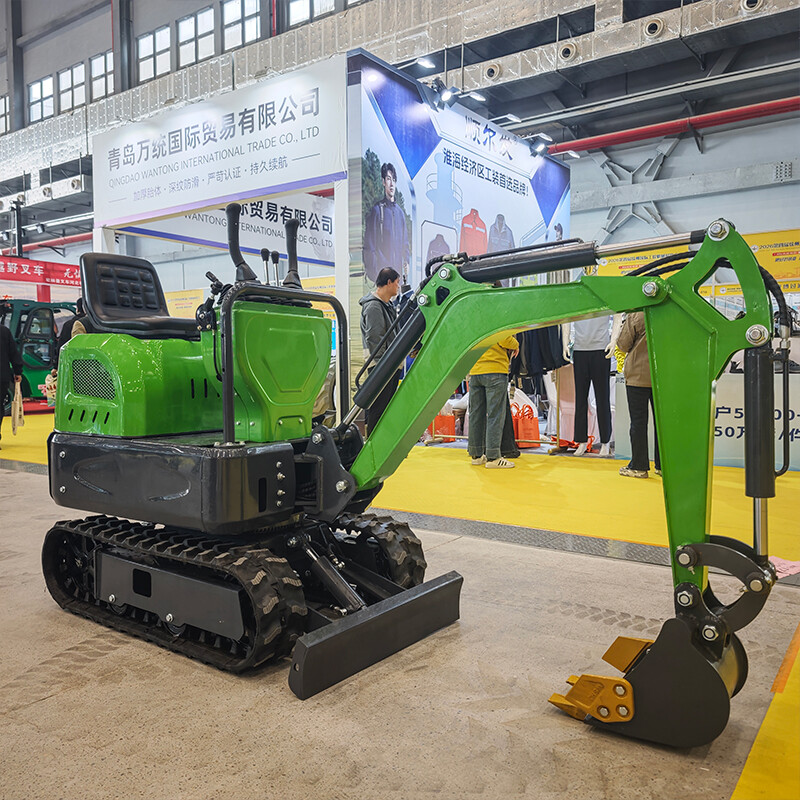

M10
Proven reliability from 1-ton class performance.
Introduction

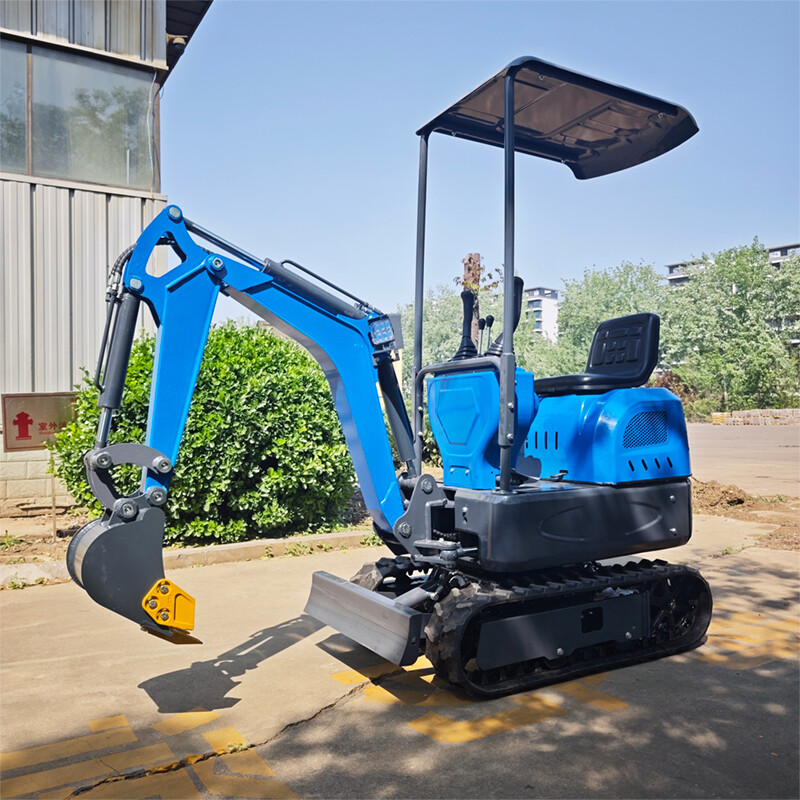

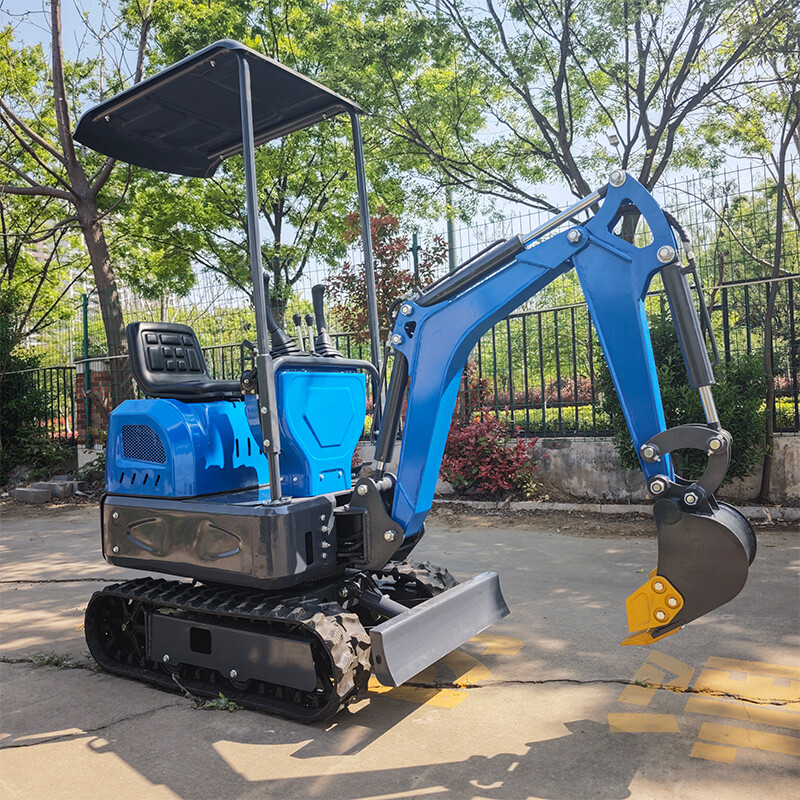

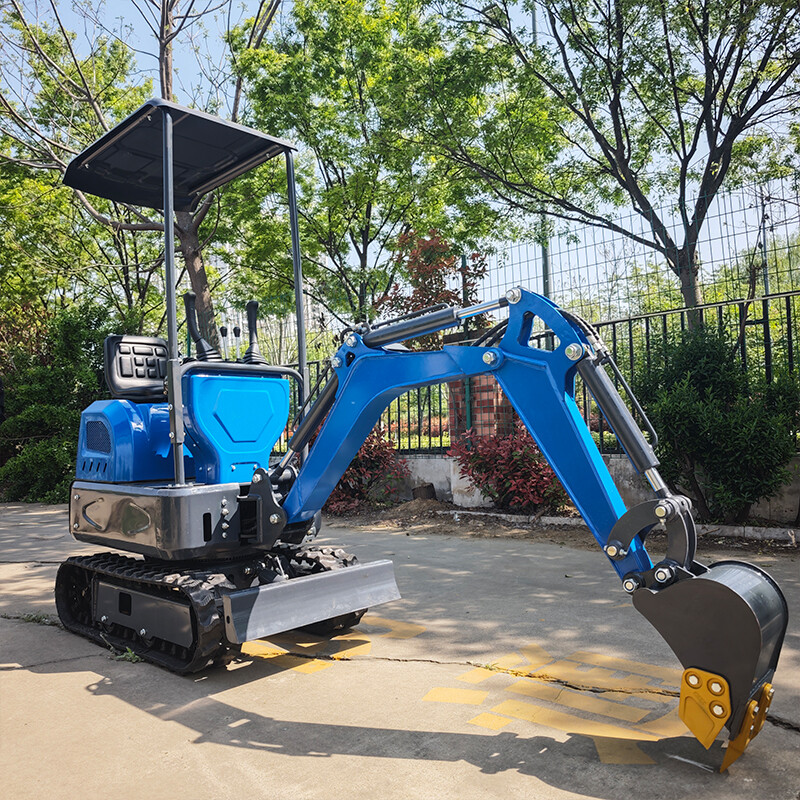

Upgraded M10 structure, more compact and stable with lower vibration and higher reliability. Removable canopy, adjustable height for low-clearance spaces like basements and workshops. Optional side swing and expandable undercarriage for tight and complex working conditions. Top-mounted cylinder and tilting cab improve digging depth and make maintenance easier.
Specifications
Parameter | Value | Parameter | Value |
Operating Weight | 900 kg | Swing Radius | 1100 mm |
Bucket Capacity | 0.02 m³ | Max Dig Height | 2450 mm |
Overall Dim. | 2850×1050×1500 mm | Max Dump Height | 1600 mm |
Fuel Tank | 5 L | Max Dig Reach | 2450 mm |
Hydraulic Tank | 13 L | Max Dig Depth | 1300 mm |
Work Pressure | 14 MPa | Hydraulic Flow | 18 L/min |
Engine | Yanmar | Gradeability | 30° |
Key Features
CE Certified
Meets European safety standards
Fuel Efficient
Advanced engine technology
24/7 Support
Round-the-clock technical assistance
