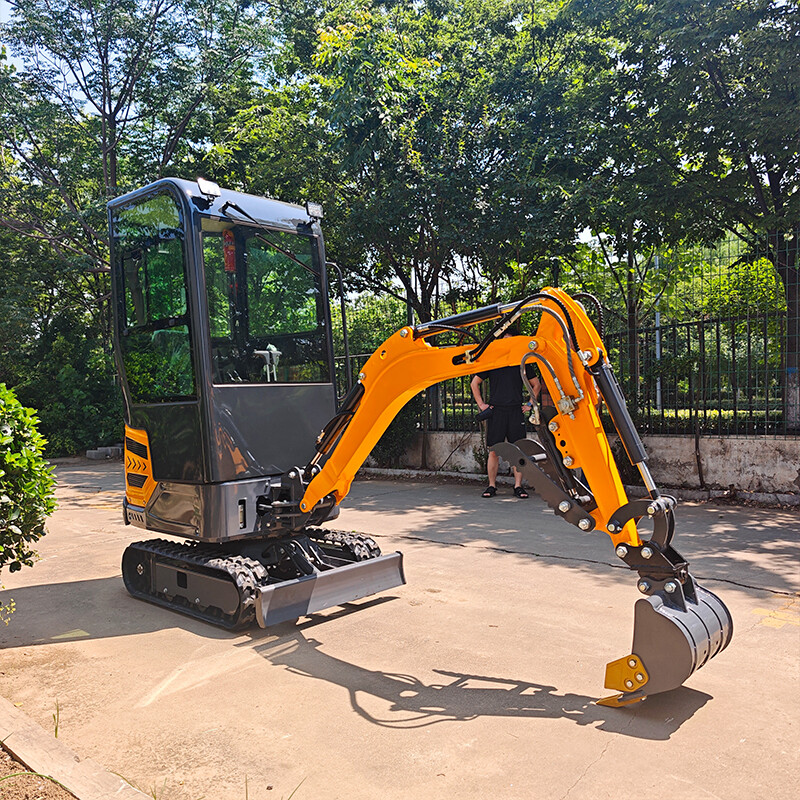

M15
Versatile 1.5-ton platform for professional operators.
Introduction

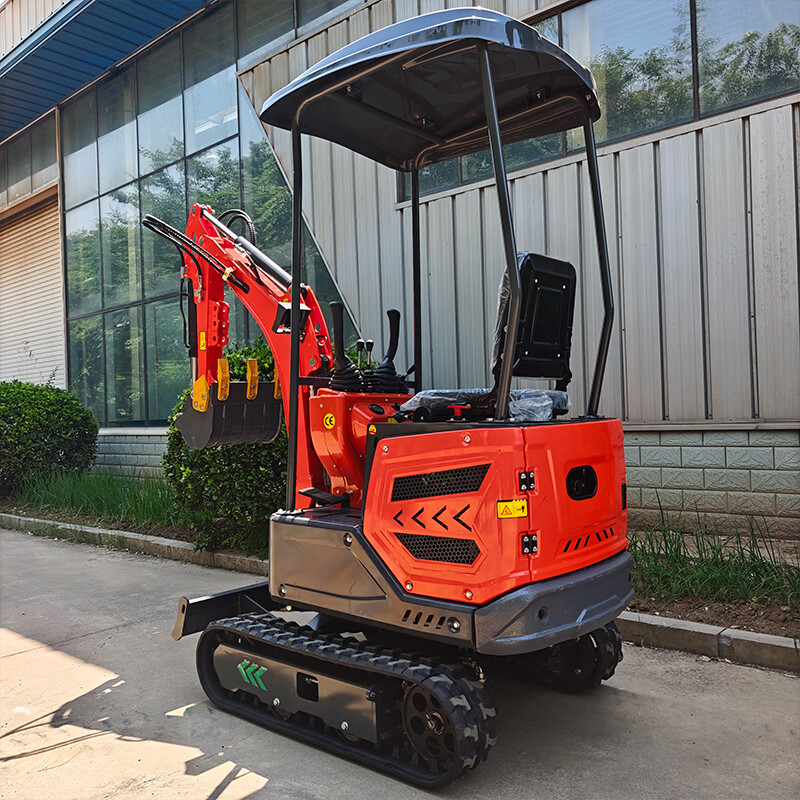

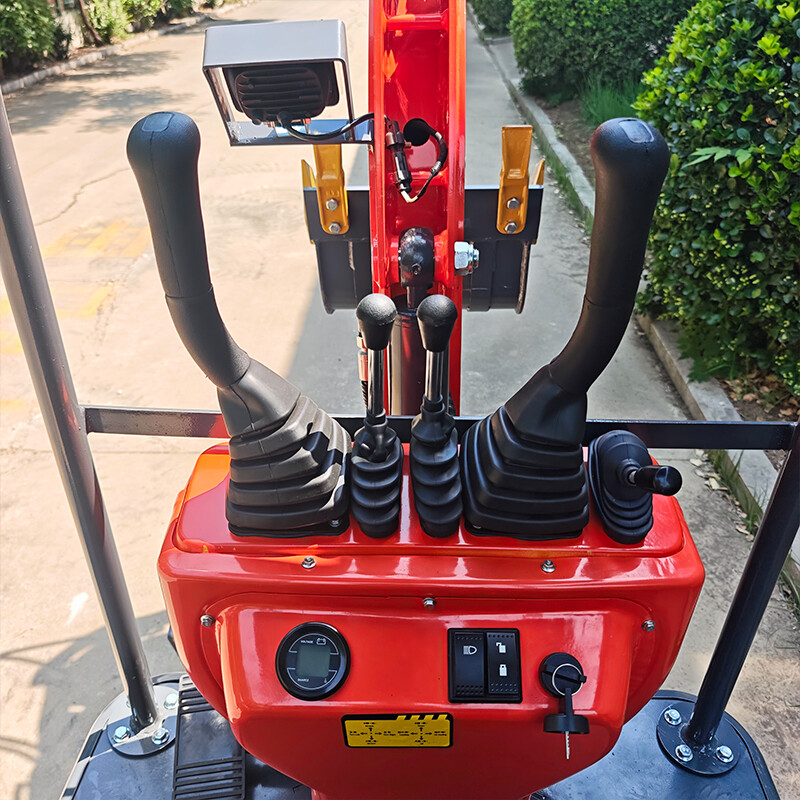

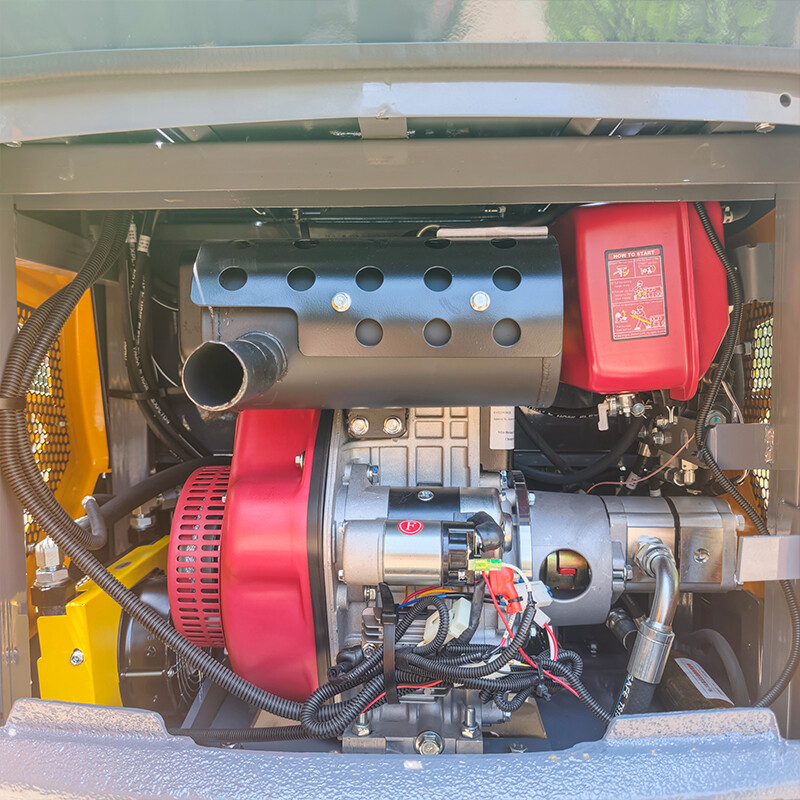

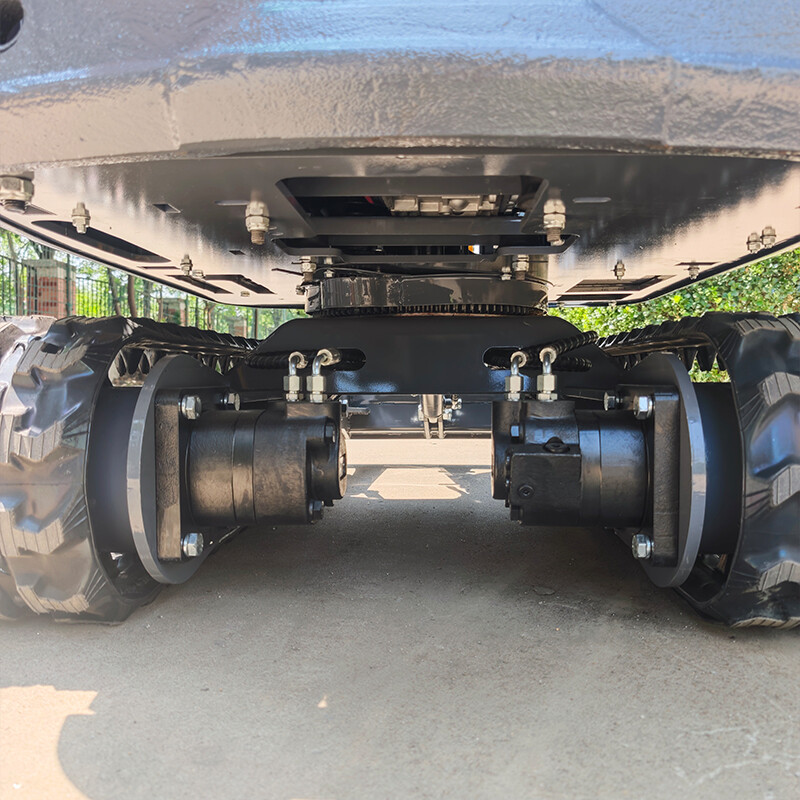

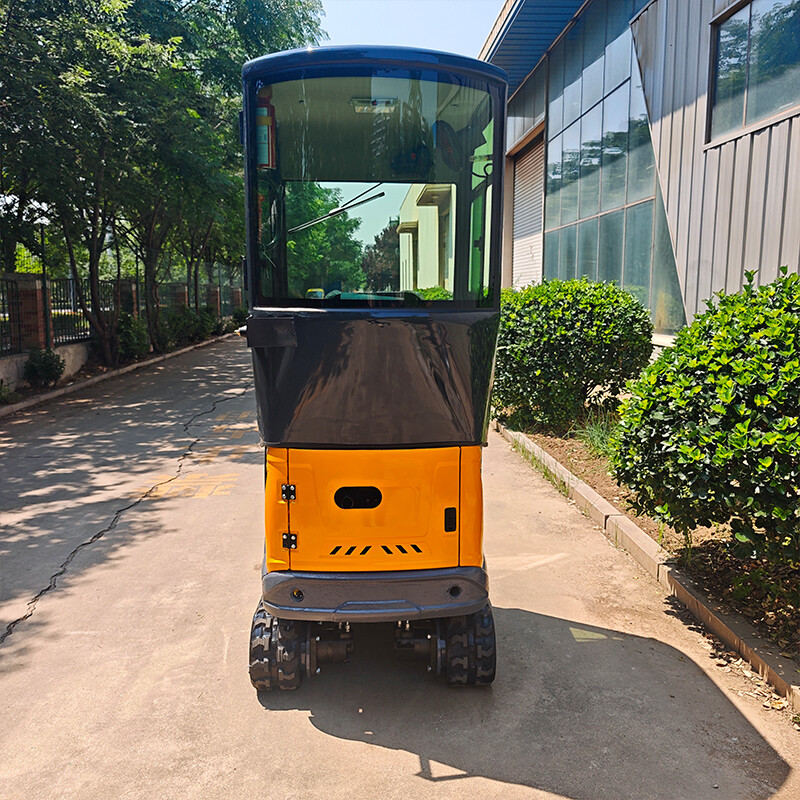

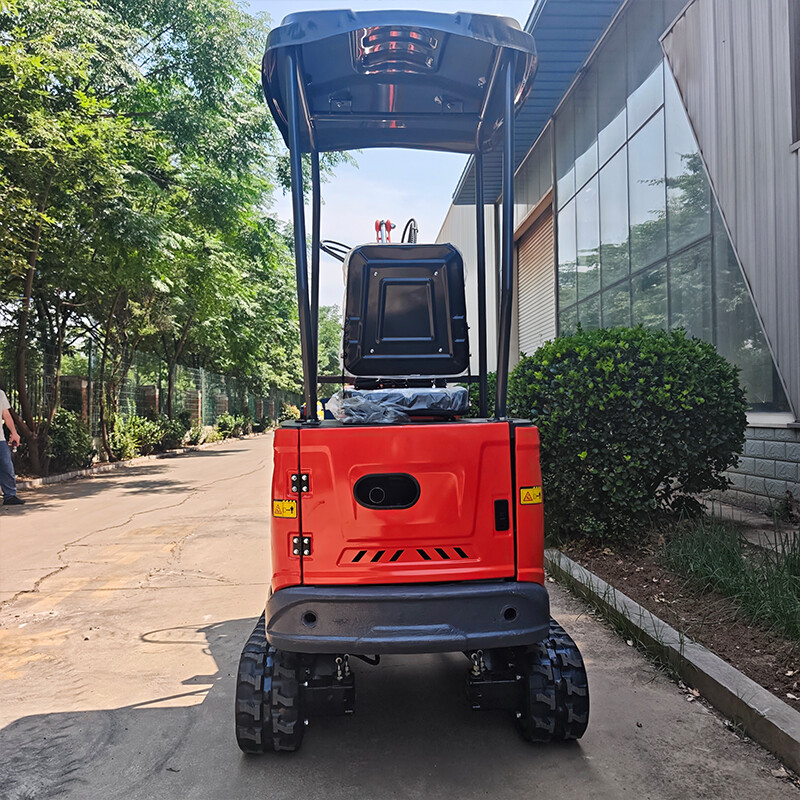

Optional hydraulic pilot control system for smoother, more precise and less labor-intensive operation. Rear-opening housing design provides easier access for maintenance and service. Multifunction instrument panel enables real-time monitoring of machine status for safer operation. Optimized structure with expandable undercarriage ensures stability and adaptability in narrow or complex job sites.
Specifications
Parameter | Value | Parameter | Value |
Operating Weight | 1450 kg | Gradeability | 30° |
Bucket Capacity | 0.04 m³ | Max Dig Height | 2700 mm |
Overall Dim. | 3100×1100×2250 mm | Max Dump Height | 1850 mm |
Fuel Tank | 8 L | Max Dig Reach | 3000 mm |
Hydraulic Tank | 20 L | Max Dig Depth | 1800 mm |
Work Pressure | 16 MPa | Hydraulic Flow | 26 L/min |
Engine | Yanmar | Track Width | 230 mm |
